| Place of Origin: | CHINA |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| Model Number: | ZKJ |
| Minimum Order Quantity: | 1set |
| 価格: | 交渉可能 |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram,Western Union |
| Supply Ability: | 5000set/year |
| Features: | Dust-free, Low Noise, Easy to Clean | Function: | Conveying material |
|---|---|---|---|
| Material: | Stainless Steel | Warehouse Volume: | 1.1-280L Or Customizable |
| Product Type: | Automatic | Air Consumption: | Varies based on system size |
| Lifespan: | 5-10 Years | Vacuum Level: | Adjustable |
| Customized Service: | Provided | Warranty: | 1 Year |
| Explosion Proof: | Optional | Conveying Method: | Vacuum suction |
| Customizable Options: | Yes |
Product description
The continuous vacuum feeding machine is an automated material conveying equipment used in industries such as food, medicine, and chemicals. It is mainly designed for the continuous transportation of low-viscosity materials like powders and granules.
It is designed with a fully sealed structure, which can prevent material contamination and dust. It complies with GMP standards in the pharmaceutical and food industries. It can also be automatically controlled through the PLC system, suitable for large-scale and highly clean production lines, helping to improve efficiency and the quality of the working environment.
Working principle
The continuous vacuum feeding machine operates based on the principle of negative pressure adsorption: The vacuum pump continuously generates negative pressure, causing the suction port to adsorb powders, particles, and other materials. The materials are carried by the airflow into the separation device for gas-solid separation. Subsequently, they fall into the downstream equipment by gravity. The clean air is filtered and then discharged, forming an uninterrupted cycle of "material suction - transportation - separation - discharging".
Its efficiency advantage is remarkable. The continuous conveying ensures that downstream equipment does not experience material shortage and shutdown. It is suitable for large-scale production. The conveying capacity can be adjusted by changing the pump power, pipe diameter, etc., reaching 10t/h (depending on the model). It can flexibly match the demand. The fully enclosed design reduces material loss and labor costs, and the equipment failure rate is low, further ensuring efficient operation.
Product features
1. Continuous transportation: Compared with intermittent equipment, it can continuously complete the material transportation, avoiding the shutdown of downstream mixers, extruders, etc. due to material interruption, directly improving the operational efficiency of the entire production line, especially suitable for large-scale continuous production.
2. High cleanliness: The fully enclosed transportation path can isolate external pollution, prevent the materials from getting damp and causing dust, which not only complies with the GMP standards of the food and pharmaceutical industries, ensuring the purity of the materials, but also improves the working environment of the workshop.
3. Strong flexibility: By adjusting the power of the vacuum pump, the diameter of the pipeline, etc., it can be adapted to different materials such as powders and particles, and the transportation volume can flexibly match different production capacity requirements. Moreover, the equipment has a small footprint and is easy to integrate into the existing production line.
4. Low consumption and easy maintenance: No need for manual supervision, reducing labor costs; less material loss, reducing waste; the equipment structure is simple, with a low failure rate, and maintenance is convenient, further reducing the risk of production interruptions.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |
Product details
Production line diagram

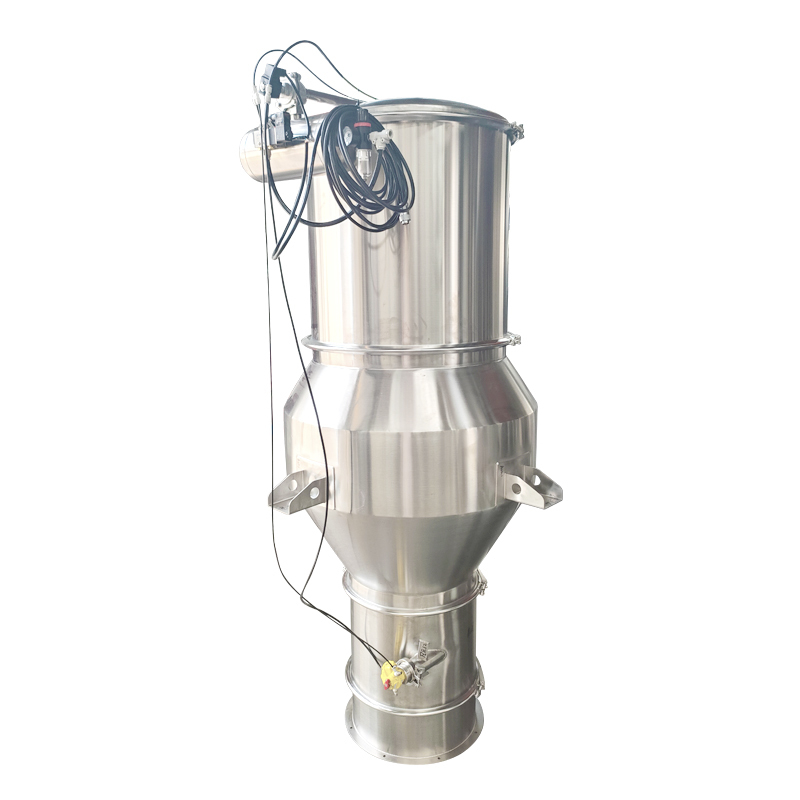

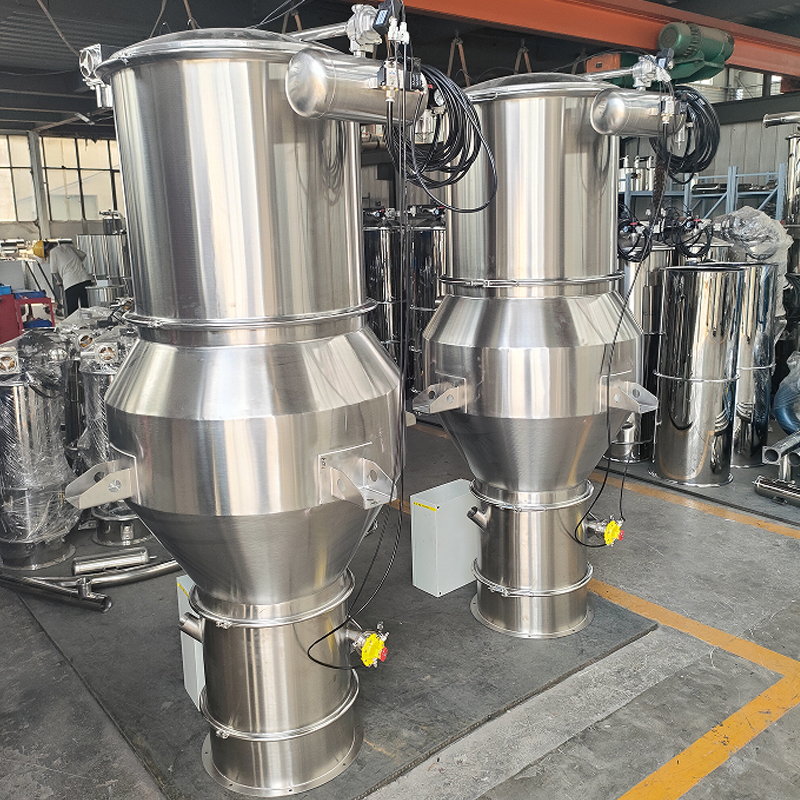

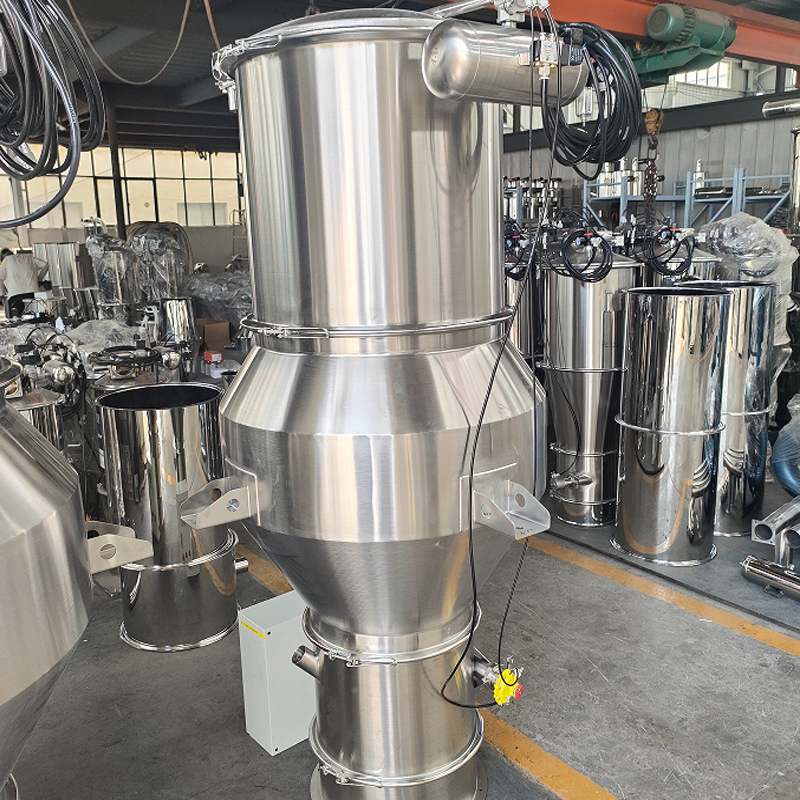

Product shows
Application
Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
