| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | DCS |
| 最小注文数量: | 1Set |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準の輸出木製ケース |
| 受渡し時間: | 7〜15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、MoneyGram、Western Union |
| 供給の能力: | 5000SET/年 |
| キーワード: | 自動包装機 | 色: | カスタマイズ可能 |
|---|---|---|---|
| 操作インターフェイス: | タッチスクリーン | 袋材料: | PE,PPのラミネートフィルム |
| タイプ: | 垂直型詰め込みシール (VFFS) | 関数: | 充填、計量、封印 |
| 駆動型タイプ: | 電気 | 制御システム: | PLCとタッチスクリーン |
| 重量範囲: | 5-50kg | バッグの種類: | 織物袋,紙袋,プラスチック袋 |
| 自動グレード: | 自動、半自動 | パッキングタイプ: | 枕袋,ガセット袋,四角シール袋 |
| 材料: | ステンレス鋼 |

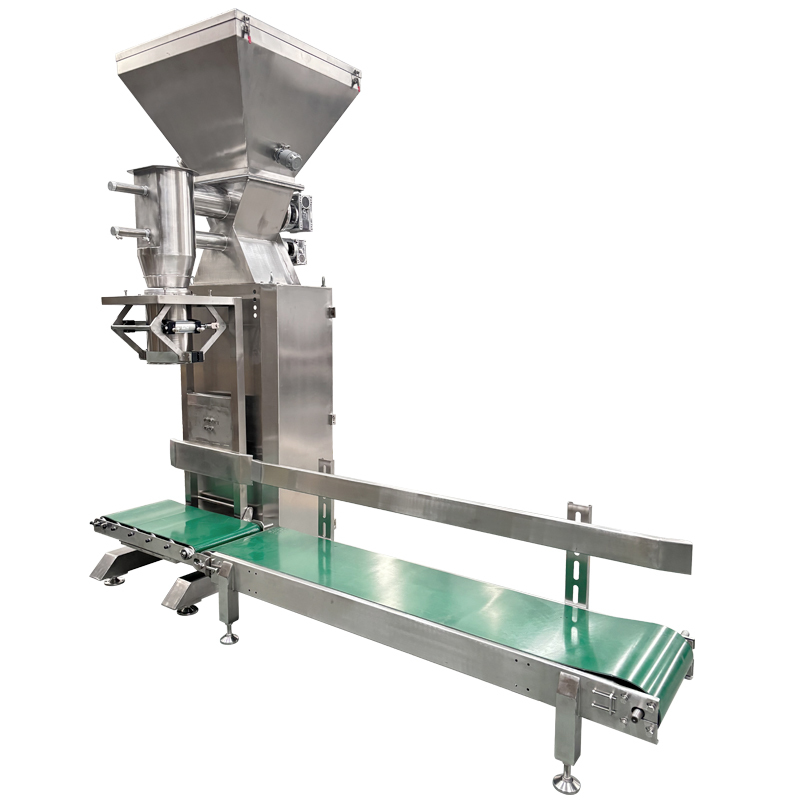

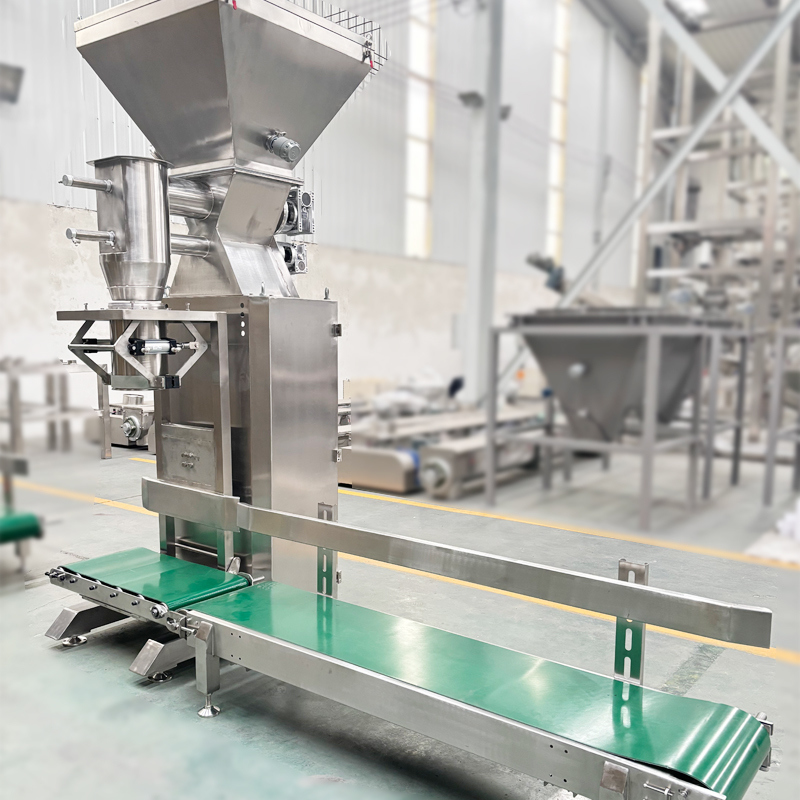

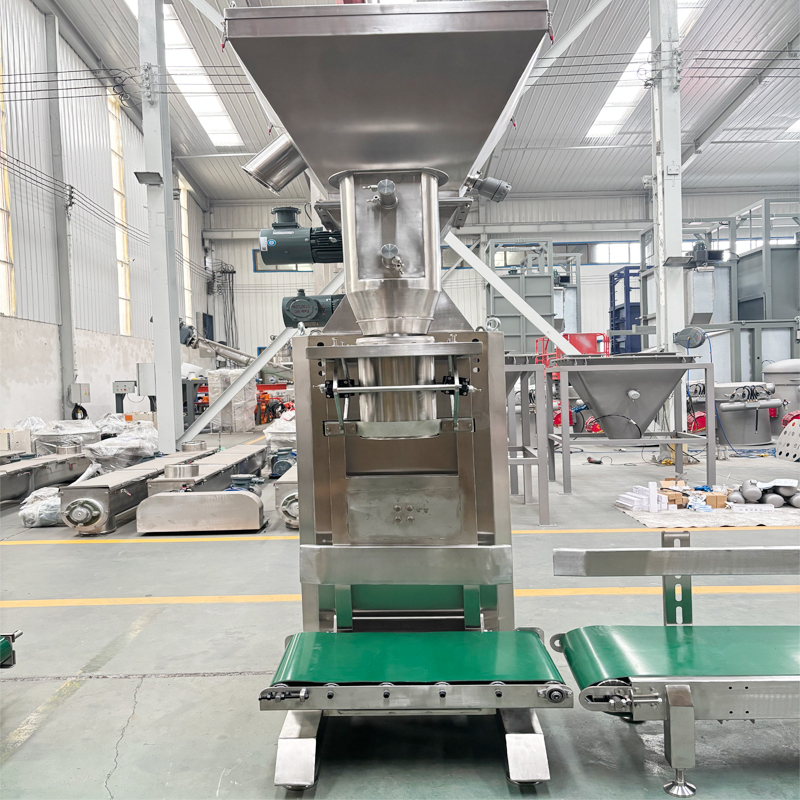

This series of packaging machines are specifically designed for bagging of 5-50kg granular and powder materials. It integrates automatic bagging, weighing, filling and sealing functions. The structure is sturdy and the operation is stable and efficient. The equipment is applicable to industries such as chemicals, feed, and grains, and can significantly improve the production efficiency and accuracy of large-bag packaging, effectively reduce labor intensity and material loss. It is an ideal choice for modern large-scale production.
This equipment typically employs a net weight-based weighing system. The working process is as follows: Firstly, the bag-feeding device picks up and opens the empty bag; then the material is fed into the weighing hopper by the feeding mechanism (such as a screw or gravity type) for precise weighing; when the target weight is reached, the weight-compliant materials are placed into the opened bag; finally, the bag-transporting device moves the bag to complete the sealing operations such as folding, sewing, or heat sealing, and outputs the finished bag.
1. High precision and high efficiency: Utilizing high-precision sensors and advanced control systems, ensuring accurate weighing; the automated process operates continuously, significantly increasing the packaging speed.
2. Robust and reliable: The body structure is sturdy, and key components are made of high-quality materials, capable of withstanding high-intensity continuous production, with low failure rate and long lifespan.
3. Flexible and adaptable: By replacing a few components, it can be quickly adjusted to accommodate different materials and packaging bags of different specifications.
4. User-friendly operation: Equipped with an intuitive touch screen human-machine interface, parameter settings and adjustments are simple; it has complete automatic diagnosis and alarm functions, making maintenance easy.
5. Environmentally friendly and clean: Adopting a sealed design, it effectively prevents dust from flying; it can be connected to dust removal equipment to maintain a clean working environment, meeting environmental protection requirements.
1.The bucket elevator transports the material into a storage hopper
2.The hopper has 2 outlets, each outlet connect with a screw conveyor
3.The screw conveyor transport the material to the bag-filling machine, the filling weight can be adjustable/customized
4.The filled bag will be sealed by the bag-sealing machine
| Metering Mode | Auger filling, Loading cell |
| Package Weight | 5kg / 10kg / 15kg / 20kg / 25kg / 50kg or customized |
| Materials | SS304 / SS316L / Carbon steel |
| Package Accuracy | ±0.2-1%(according to the material) |
| Packaging Speed | 2-10bags/min(according to the material) |
| Power Supply | 220V,380V,480V or customized |
| Hopper Volume | 50L |
| Total Power | 5Kw |
| Overall Dimensions | 1000×900×2150mm or customized |
| Operational Style | PLC control system,Colorful touch screen |
