| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN MACHINERY |
| 証明: | ISO,CE |
| モデル番号: | eybs |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準の輸出木製パッケージ |
| 受渡し時間: | 7～15営業日以内 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム、L/C |
| 供給の能力: | 5000セット/年 |
| 動き: | 三次元運動 | スクリーンクリーニング方法: | ボンティングボール/超音波システム |
|---|---|---|---|
| 特徴: | 高効率,低騒音,維持が簡単 | ばねを弱めること: | ゴムから作られた振動隔離スプリング |
| 該当する業界: | 農場,小売,食品店,印刷店 | 機能: | フィルタリング,清掃,分類 |
| 色: | お客様のご要望 | メッシュ 清掃 方法: | ボンブボール |
| カスタマイズ: | 利用可能 | 表面処理: | 砂吹き,磨き,塗装など |
| 層: | 1~5 | 状態: | 新しい |
| 材料: | ステンレス鋼 | 振動タイプ: | 転倒する動き |

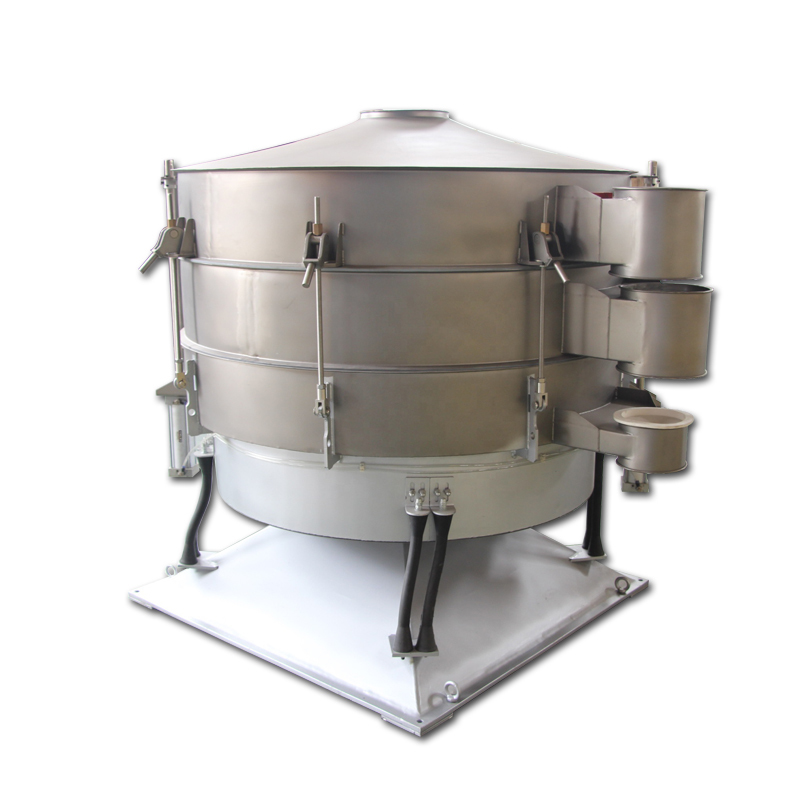

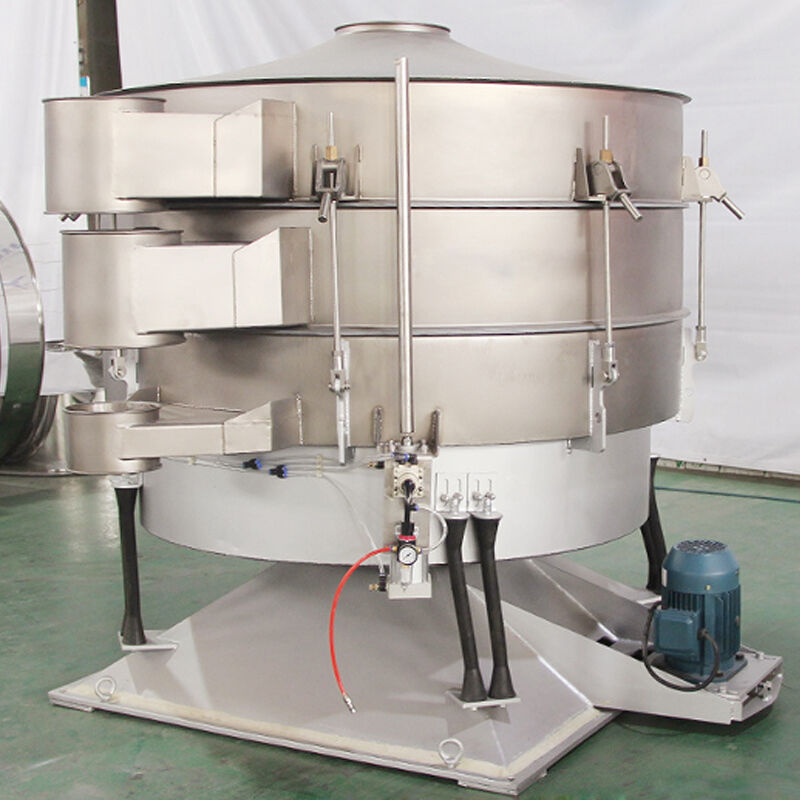

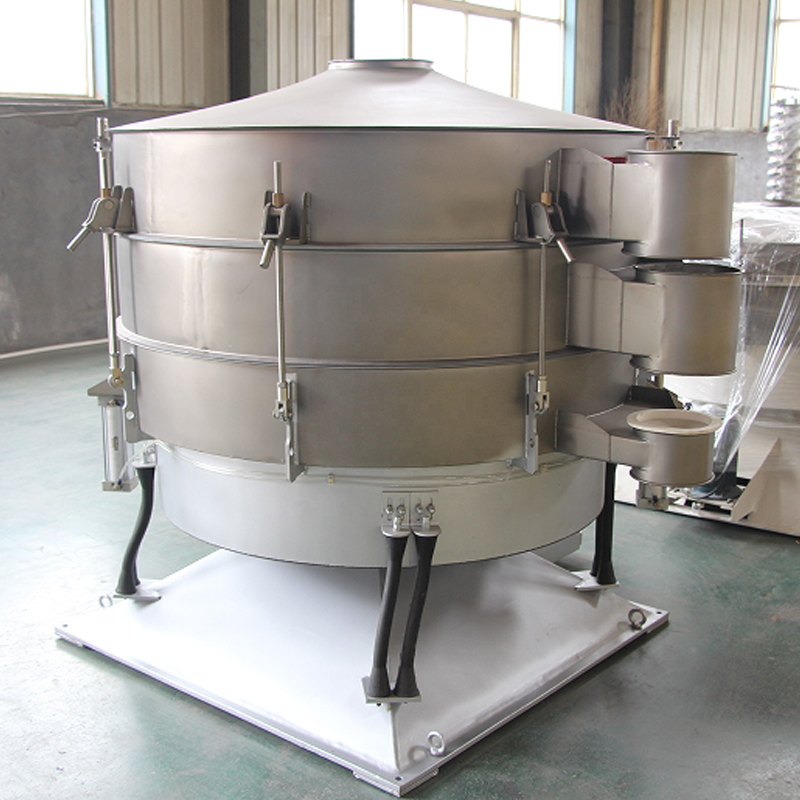

Product Introduction
The vibrating screen is an efficient screening equipment, renowned for its gentle screening method and outstanding performance. By simulating the gentle manual screening action, it can effectively classify and process various materials. The equipment operates smoothly, has low noise, causes minimal damage to the material particles, and is particularly suitable for handling fragile, fine, or sticky materials. With its high output, long lifespan, and ease of maintenance, the vibrating screen is a reliable and cost-effective choice in numerous industrial fields.
Working principle
The vibrating screen is an efficient screening equipment. Its core principle is to simulate the gentle action of manual screening. It generates a smooth three-dimensional elliptical swinging motion through a special driving mechanism, allowing the materials to spread evenly on the screen and be separated quickly. Fine particles can pass through the screen gently and multiple times, while coarse particles move slowly along a spiral trajectory and finally achieve precise classification. This unique working method makes it particularly suitable for processing fine, fragile or viscous materials. It has the characteristics of stable operation, low noise, large processing capacity and without damaging the material particles. It is widely used in industries such as food, chemical and pharmaceutical for screening applications with high requirements for screening quality.
Product Features
1. High screening accuracy: The unique elliptical swinging motion ensures efficient dispersion and precise classification of materials.
2. Large processing capacity: The multi-layer stacking design enables multi-stage screening in a single run, with high production capacity.
3. Protection of materials: Smooth and gentle operation, without damaging fragile and fine particles, maintaining the original particle shape.
4. Reliable operation: Low noise and low vibration design reduces equipment wear, with low maintenance costs.
5. Design for preventing blockages: The swinging motion combined with the cleaning net device effectively prevents screen mesh from getting clogged, maintaining continuous screening.
6. Good environmental sealing: Easy to achieve a fully enclosed structure, eliminating dust dispersion and meeting clean production requirements.
7. Simple installation: Low impact on the foundation, flexible installation, and no need for complex foundation fixation.
Product Parameter
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5
|
600mm |
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67 |
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
Production line diagram
Application
Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
Why choose us
About us
FAQ
Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.
Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
