| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | QVC |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準的な輸出用木製ケース |
| 受渡し時間: | 7～15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、マネーグラム、ウェスタンユニオン |
| 供給の能力: | 5000セット/年 |
| 音量: | 50L-5000L | 制御システム: | PLC |
|---|---|---|---|
| キーワード: | 粉末混合機 | キーワード: | ミキサー機 |
| 材料: | ステンレス鋼 | 放電モード: | 空気式大型ドアまたはバタフライバルブ |
| 保証: | 1年 | 使用法: | 粉末、粒子、液体の混合 |
| 寸法: | カスタマイズされた | 放電方法: | 手動/空圧式 |
| 製品型式: | カスタマイズ | 関数: | 原料の混合 |
| 電源: | 電気 |
Product description
The helical ribbon mixer is a highly efficient and versatile industrial mixing device, mainly used in multiple fields such as chemical engineering, food, feed, and building materials. It is specifically designed for uniformly mixing powdery, granular, or materials with a certain viscosity. Its core advantages lie in its fast mixing speed and high efficiency, capable of completing the mixing of large quantities of materials in a short time. Additionally, the equipment features a compact structure, smooth operation, and low energy consumption.
Working principle
The working principle of the helical mixer is based on forced convection. The core of it lies in the fact that the stirring shaft is equipped with inner and outer double-layer helical blades with opposite directions: during operation, the outer helical blade pushes the material from both sides towards the center, while the inner helical blade pushes the material from the center towards both sides. This bidirectional movement forms a strong vortex and shear force within the cylinder, enabling the material to rapidly achieve uniform mixing through rolling and circulation.
Product features
Efficient and uniform
The mixing speed is fast and the uniformity is high. The efficiency is far superior to that of traditional mixing equipment.
Wide applicability
It can handle powders, particles, semi-fluids, high-viscosity materials, as well as solid-solid and solid-liquid mixtures; it can be optionally equipped with heating, cooling, and liquid spraying functions.
The discharge is rapid and there is little residue.
The discharge is fast. With the design of a large opening or a flush valve, combined with the screw belt for propulsion, the residue is extremely low.
Stable operation, low energy consumption
The mixing process is gentle, causing minimal damage to the materials; the structure is compact, with relatively low power requirements, ensuring smooth and reliable operation.
Easy to clean, convenient for maintenance
The interior is smooth without any dead corners. The bearings are placed externally to prevent contamination, making cleaning and maintenance easy.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Product details

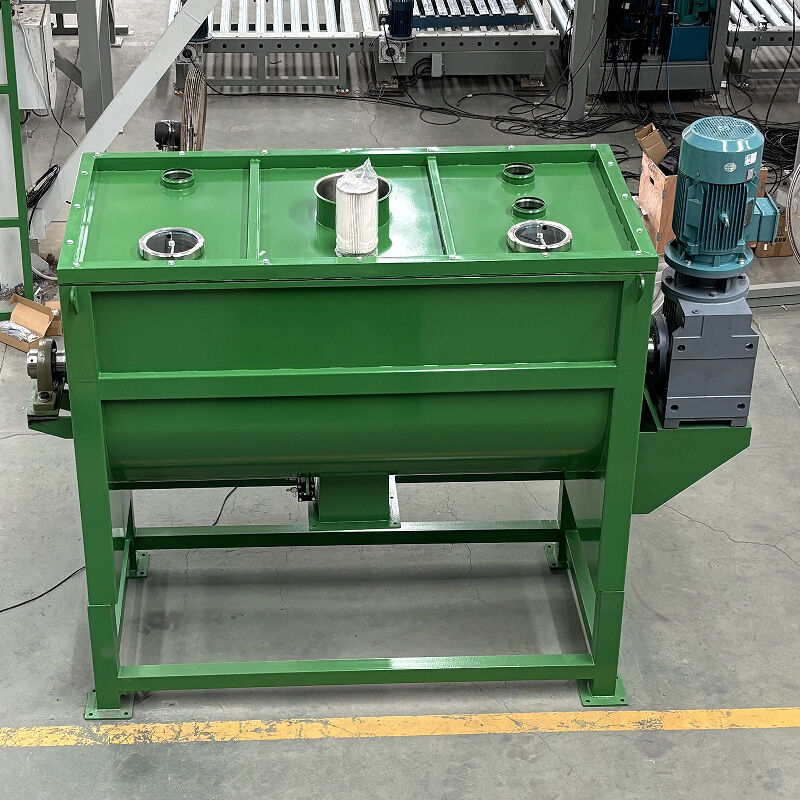

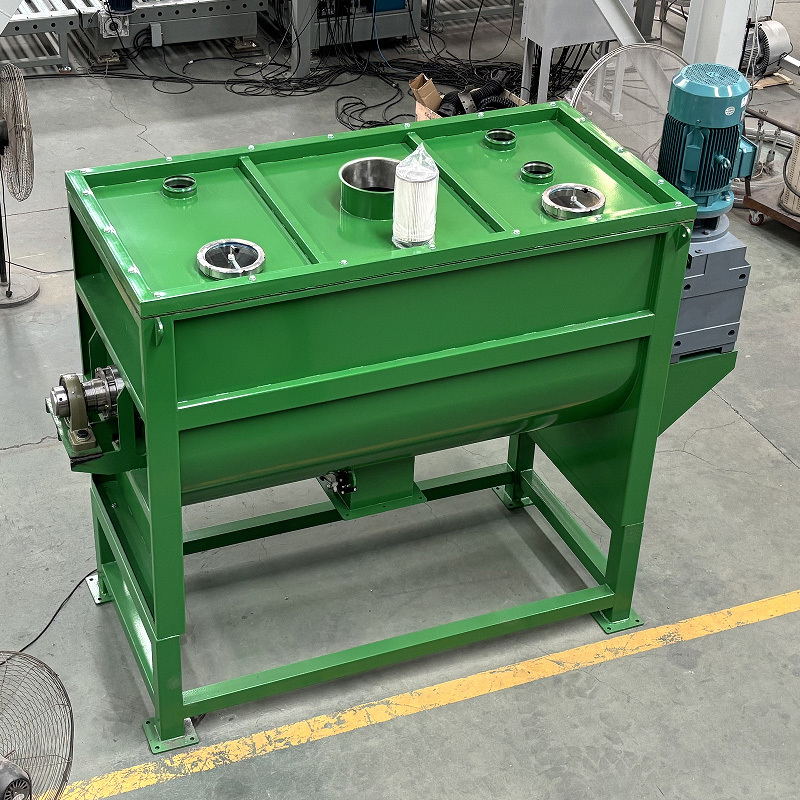

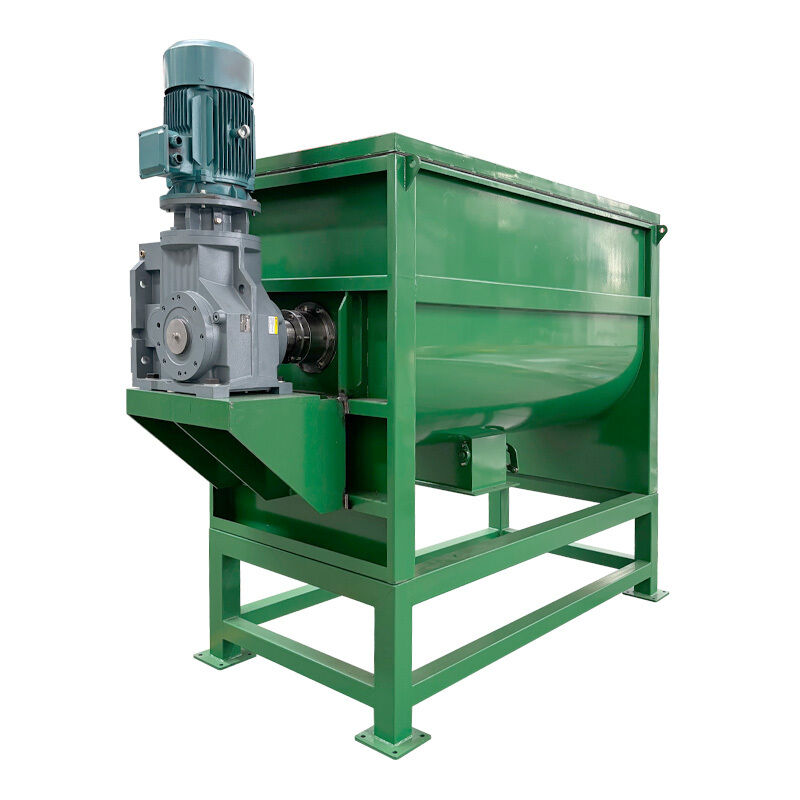

Product shows
Product application
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
Packaging & Shipping
Why Choose us
About us
Company Profile
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
