| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | EDS |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準的な輸出用木製ケース |
| 受渡し時間: | 7～15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、マネーグラム、ウェスタンユニオン |
| 供給の能力: | 5000セット/年 |
| 距離を伝える: | カスタマイズされた | 安全機能: | ダスト制御システム |
|---|---|---|---|
| カスタマイズオプション: | 利用可能 | アドバンテージ: | 高度の自動化 |
| 寸法: | カスタマイズされた | 控えめなシステム: | はい |
| Customziedサービス: | サポート | アプリケーション: | バルク材料の取り扱い、食品加工、化学処理 |
| 材料: | ステンレス鋼 | 主な機能: | 吸塵を持って来なさい |
| 特徴: | ダストフリー | 使用法: | 小袋の放出 |
| 安全システム: | はい | 集じん器: | はい |
| 耐用年数: | 長さ | 該当する業界: | プラスチック、鉱物、飼料など |
Product description

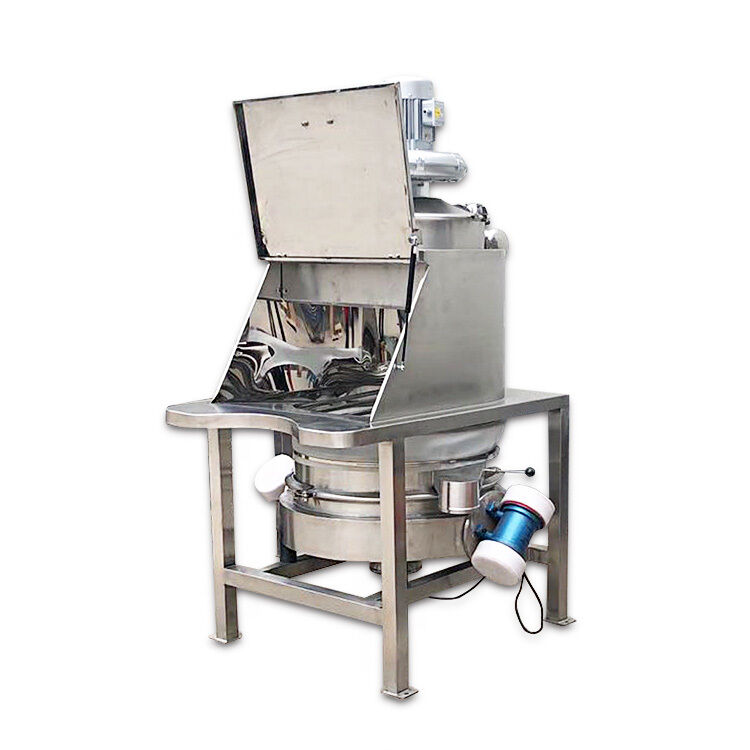

The combination of the dust-free feeding station and the direct discharge screen constitutes an integrated solution for the clean and efficient processing of powder and granular materials. This system, with its fully enclosed design, controls dust emission at the source and enables clean production. After the materials are unloaded in a dust-free manner at the feeding station, they directly fall into the direct discharge screen for rapid screening. The process is seamless and integrated, significantly enhancing production efficiency while ensuring the safety of the operating environment and the quality of the materials. It is widely applied in industrial production processes that require high standards of cleanliness and continuity.
Working principle
When the materials are unpacked in the sealed compartment of the feeding station, the negative pressure system immediately absorbs the dust, ensuring that the materials fall down into the downstream direct-discharge sieve under the influence of gravity. The direct-discharge sieve vibrates to quickly disperse the materials on the sieve surface, allowing the qualified fine materials to be vertically discharged, while the coarse materials are separated to the side. The entire process is continuously and automatically completed in a closed system, achieving dust-free operation and rapid classification.
Features & Benefits
1. Clean and environmentally friendly: The fully enclosed and negative pressure dust removal design prevents dust at the source, ensuring a clean production environment.
2. High efficiency and continuity: The feeding and screening processes are seamlessly connected, with materials flowing freely, significantly improving processing efficiency.
3. Compact structure: The integrated design saves space and is convenient for line integration and layout.
4. Easy operation: High automation level with minimal manual intervention, and simple daily cleaning and maintenance.
5. Reliable quality: Efficient screening ensures uniform particle size of materials, and the sealed process avoids cross-contamination.
6. Widely applicable: Suitable for industries such as pharmaceuticals, food, and chemicals that have strict requirements for clean production.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW | 3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
