| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN MACHINERY |
| 証明: | ISO,CE |
| モデル番号: | GPS |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準の輸出木製パッケージ |
| 受渡し時間: | 5-15の仕事日以内に |
| 支払条件: | T/T、Western Union、MoneyGram、L/C |
| 供給の能力: | 5000セット/年 |
| 材料: | ステンレス鋼 | スクリーンフレーム: | ステンレス鋼 |
|---|---|---|---|
| 保証: | 1年 | キーワード: | 放出振動スクリーン |
| タイプ: | 円形 | 利点: | 高精度の選別機械 |
| パーソナライズされたサービス: | サポート | 使用法: | 粉にし、液体のろ過等級別になる |
| に適しています: | 粉末および粒状材料 | 適用する: | 医薬品,化学,食品,化粧品など |
| 作業条件: | 連続 | 特徴: | 分解しやすく、清潔で調整可能な振動強度、コンパクトデザイン |
Product Description
High-frequency screen is a device that uses high-frequency vibration to achieve fine screening of materials. Its core components include high-frequency vibration motors, screen boxes, and screens. With high vibration frequency and small amplitude, it can effectively overcome the problem of material clogging the screen. It is widely used in the classification, impurity removal or dehydration of fine and ultra-fine materials. Compared with ordinary screening equipment, it has higher screening efficiency and better accuracy, and is widely applied in fields such as mining, building materials, and environmental protection, serving as a key equipment for fine material processing.
Working principle
The working principle of the high-frequency screen is centered on high-frequency and small-amplitude vibration. It is generated by a high-frequency vibration motor or exciter, which is then transmitted through the transmission structure to the screen box and screen mesh. After the fine-grained materials fall onto the screen surface, the high-frequency vibration breaks the adhesion force of the particles, allowing the material layer to be loosely suspended and separated by size and density. The fine particles overcome the friction force and pass through the screen to form the screen bottom product, while the coarse particles are pushed by the vibration force towards the discharge end and are discharged. This achieves fine material classification, impurity removal or dehydration, effectively solving the clogging problem of ordinary screens.
Product
1. Fewer blockages and higher efficiency: High-frequency and low-amplitude vibration can loosen the materials, break the particle adhesion, and allow fine particles to pass through the screen quickly, significantly reducing blockages and improving processing efficiency compared to ordinary screens.
2. Excellent grading accuracy: It can precisely distinguish materials of different particle sizes, meeting the requirements for strict particle size control in various scenarios.
3. Strong adaptability: It can be used for dry grading, wet screening or dehydration, and is suitable for handling fine materials in multiple industries.
4. Low energy consumption and stable performance: Compact structure, low operating noise, low failure rate, and lower energy consumption than ordinary screens with the same processing capacity.
| Model No. | Effective sieve diameter(mm) |
Powder (KW) |
Vibration force | Rotary speed (r/min) |
| EGPS-600 | 550 | 0.55 | 8000N | 3000 |
| EGPS-800 | 760 | 0.75 | 10000N | 3000 |
| EGPS-1000 | 930 | 1.1 | 15000N | 3000 |
| EGPS-1200 | 1130 | 1.5 | 20000N | 3000 |
| Machine can be customized based on your need | ||||

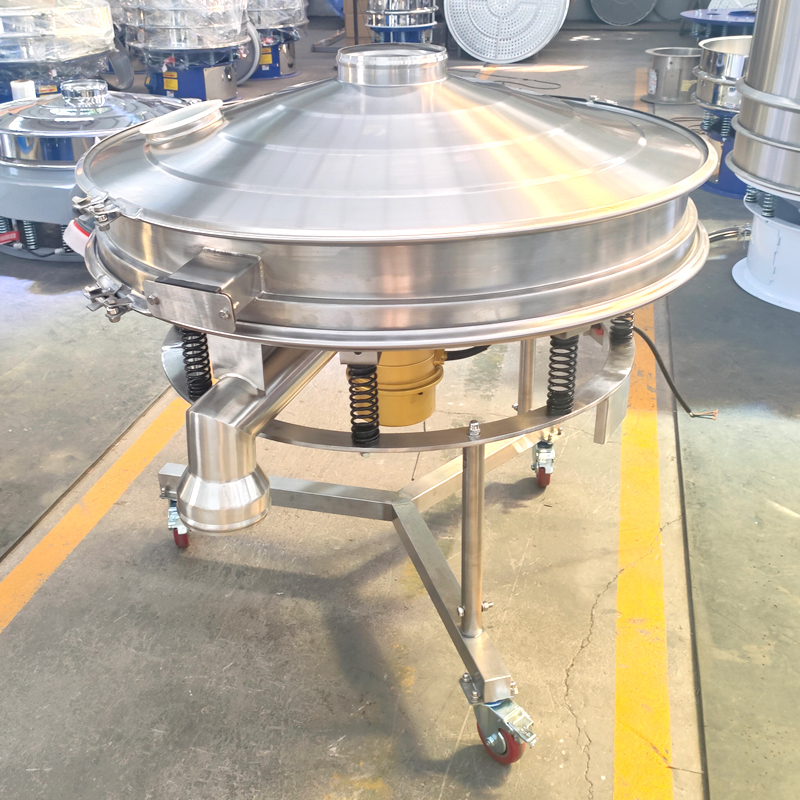

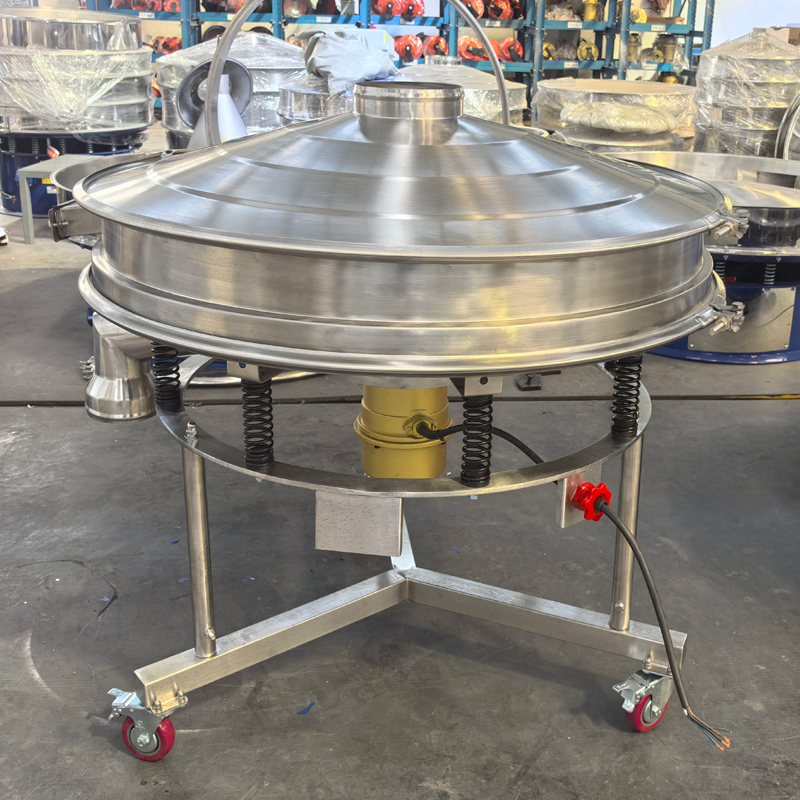

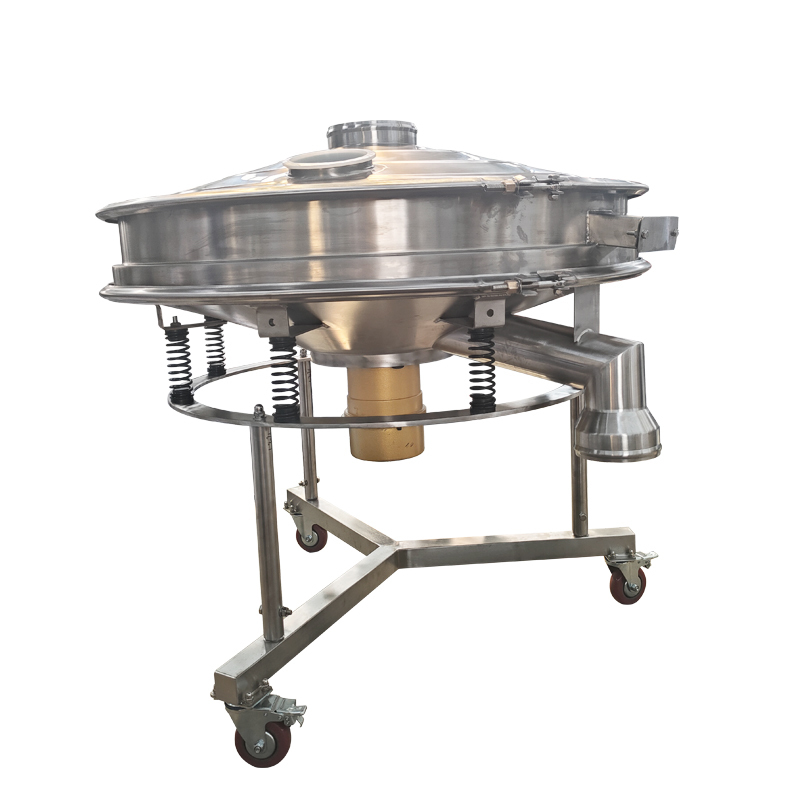

Product display
The 450 liquid filter is suitable for filtration and solid-liquid separation of a variety of materials, including but not limited to the following types of materials:
1. Suspension: Filter solid particles suspended in liquid, such as ore slurry, ceramic suspension, etc.
2. Sewage treatment: remove solid particles and suspended matter in sewage.
3. Chemicals: Filter various chemicals, such as solvents, dyes, pigments, resins, etc.
4. Food and Beverages: Filter liquids such as juice, alcohol, beverages, cooking oils, etc.
5. Pharmaceutical products: filtering liquid medicine, slurry, preparations, etc.
6. Petroleum and chemical industry: filtering crude oil, liquids in the refining process, chemicals, etc.
