| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | eds |
| 最小注文数量: | 1Set |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準の輸出木製ケース |
| 受渡し時間: | 7〜15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、MoneyGram、Western Union |
| 供給の能力: | 5000SET/年 |
| メンテナンス: | 低い | 距離を伝える: | カスタマイズ |
|---|---|---|---|
| 安全機能: | ダスト制御システム | カスタマイズオプション: | 利用可能 |
| アドバンテージ: | 高度の自動化 | 寸法: | カスタマイズ |
| 控えめなシステム: | はい | Customziedサービス: | サポート |
| 応用: | バルク材料の取り扱い、食品加工、化学処理 | 材料: | ステンレス鋼 |
| 主な機能: | 吸塵を持って来なさい | 特徴: | ほこりがない |
| コントロール: | plc | 使用法: | 小袋の放出 |
Product description

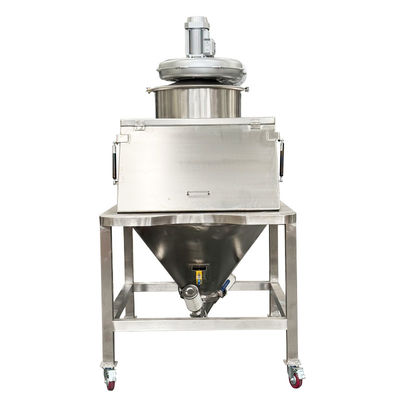

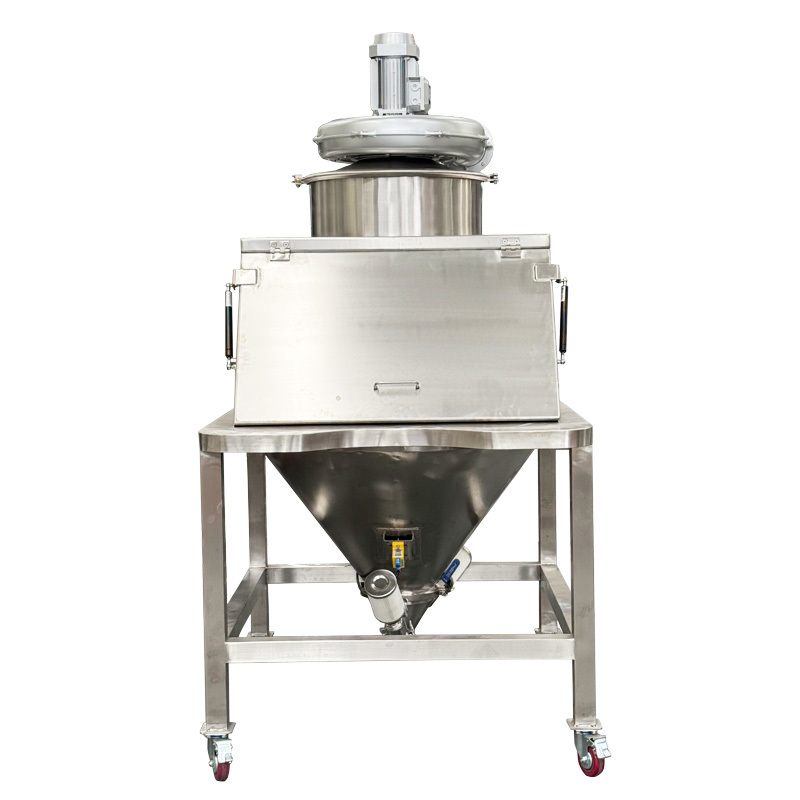

The dust-free feeding station is a specialized equipment used in industrial production to ensure the clean feeding of materials. It is suitable for powders, particles and other dust-prone materials. Through negative pressure suction and sealed chambers, it can prevent dust from escaping during feeding, thereby protecting the workshop environment and the health of personnel.
It can be compatible with various types of material bags such as ton bags and small bags, and has the functions of breaking the hopper and screening materials. It is widely used in industries with high cleanliness requirements such as food, medicine, and chemical industries, helping to produce products that meet environmental protection and hygiene standards.
Working principle
The dust-free feeding station operates based on the core principle of "sealing isolation + negative pressure suction": The sealed chamber is precisely aligned with the feeding port to prevent dust from spilling out;At the same time, it can prevent the blockage of the feeding port by vibration to break the arch, and also integrate the synchronous screening and debris removal function of the screen, which can be adapted to various material bags and help achieve clean feeding of dust-prone materials.
Features & Benefits
1. Highly effective dust prevention: Through a dual design of sealed chamber and negative pressure suction, it prevents dust from leaking from the source, ensuring the cleanliness of the workshop and the health of personnel.
2. Strong adaptability: It can be connected to various types of material bags such as ton bags and small bags, and is compatible with powdery and granular materials prone to dust. It is suitable for multiple industry scenarios.
3. Diverse functions: It comes with a break-arch device to prevent blockage and can be optionally equipped with a screening component for simultaneous impurity removal, balancing smooth feeding and material purification.
4. Easy operation and maintenance: The structure is simple, the feeding connection is convenient, and the filter bags and other components are easy to disassemble and clean, suitable for continuous production needs.
5. High compliance: It meets the strict hygiene and environmental protection standards of industries such as food and medicine, helping production comply with relevant regulations.
Product parameter
| Model | Feeding port diameter | Power of blower | Air pressure of blower |
| EDS-600 | 600mm/24inch | 1.5KW | 3Kpa-25m³/m |
| EDS-800 | 800mm/32inch | 1.5KW | 3Kpa-25m³/m |
| EDS-1000 | 1000mm/40inch | 2.2KW | 3.6Kpa-39m³/m |
| EDS-1200 | 1200mm/48inch | 2.2KW |
3.6Kpa-39m³/m |
Production line diagram
1. Workers feed powder into the dumping station
2. Vacuum conveyor transfer the powder to the mixer
3. Starting mixing
Detail display
Product display
Application
Packaging & Shipping
Why Choose Us
About us
