| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | SYH |
| 最小注文数量: | 1Set |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準の輸出木製ケース |
| 受渡し時間: | 7〜15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、MoneyGram、Western Union |
| 供給の能力: | 5000SET/年 |
| 形: | 双角形 | 材料タイプ: | 粉状および粒状材料 |
|---|---|---|---|
| 電圧: | カスタマイズ可能 | 最大容量: | 100-1500L |
| 保証: | 1年 | 応用: | 医薬品/食品/化学物質 |
| 使用法: | 均質な混合 | 材料: | ステンレス鋼 |
| スピード: | 調整可能 | 安全機能: | 緊急停止ボタン、過負荷保護 |
| 重要な利点: | 連続動作 | 関数: | 原材料の混合 |
| オプションの機能: | 爆発 防止 設計 | ||
| ハイライト: | 100-1500L Capacity Double Cone Blender,Adjustable Speed Double Cone Mixer,Stainless Steel Conical Mixer |
||
Product description

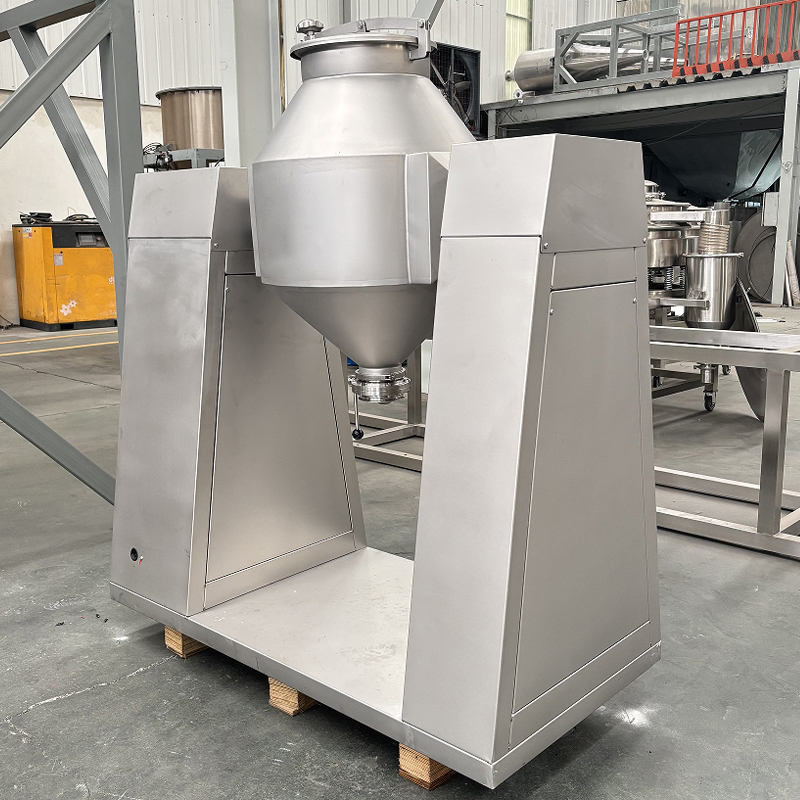

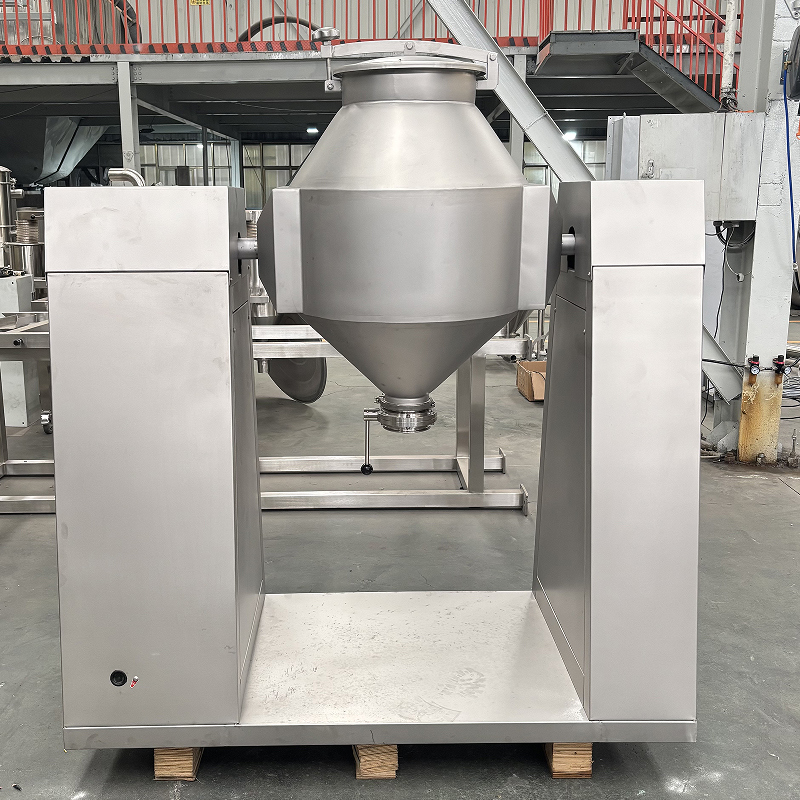

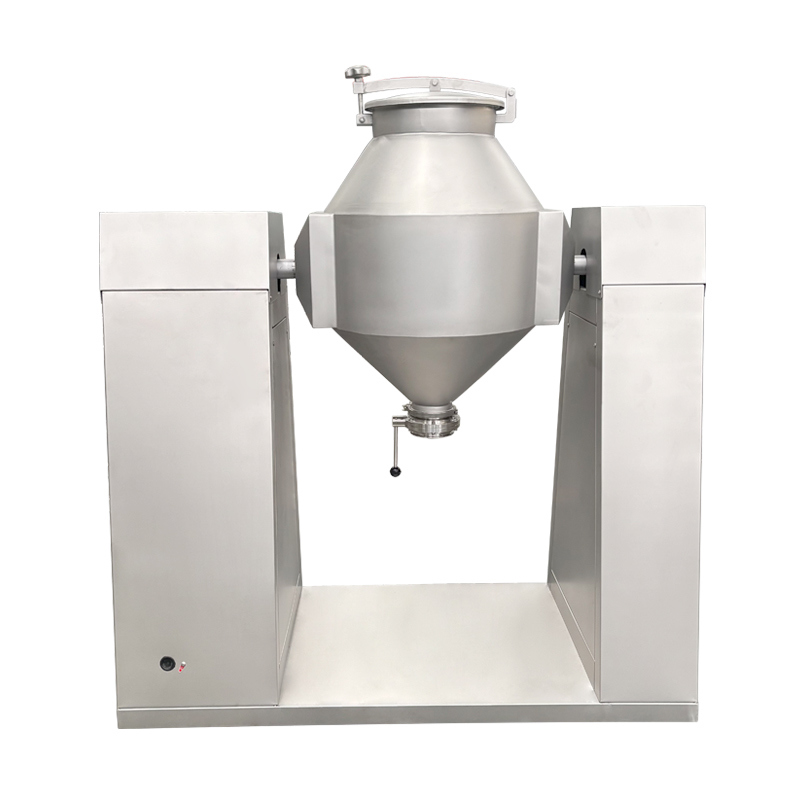

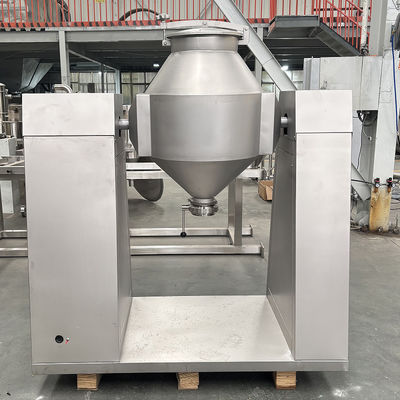

The double cone mixer is a highly efficient equipment commonly used for powder mixing. Its core structure is a double cone-shaped rotating cylinder. It features high mixing efficiency and no dead corners for stirring. Moreover, the overall structure of the equipment is sealed, which can effectively reduce dust pollution and ensure a clean production environment. This equipment has a wide range of applications and can be used in multiple industries such as pharmaceuticals, chemicals, and food. It is mainly suitable for granular and powdered materials, especially for production scenarios with high requirements for mixing uniformity.
Working principle
The specific process can be divided into three key steps:
1. Cylinder rotation: The motor drives the double-conical cylinder to rotate slowly in alternating forward and backward directions, changing the force state of the materials within the cylinder.
2. Material movement: The rotation of the cylinder causes the internal materials to continuously move up and down, left and right, and spread out from each other, breaking the initial stacking state of the materials.
3. Uniform mixing: During the continuous complex movement of the materials, they gradually achieve sufficient contact and penetration between the particles, ultimately achieving the effect of uniform mixing.
Product characteristics
1.Excellent mixing effect
High uniformity of mixing. Through the rotation of the cylinder body, the materials move in all directions, effectively avoiding local accumulation and reducing mixing dead zones.
High mixing efficiency. Compared to some static mixing equipment, it can shorten the material mixing cycle and improve the overall production efficiency.
2. Convenient operation and maintenance
The structure is simple and elegant, without complex internal stirring components. The subsequent cleaning and maintenance are less demanding, reducing equipment downtime.
The equipment has strong sealing properties, and during operation, it can reduce the leakage of dust, which not only protects the purity of the materials but also improves the production environment.
3. Wide application scenarios
High compatibility, it can not only mix powdered and granular materials, but also handle some semi-liquid materials containing a small amount of liquid.
Suitable for multiple industries, it can operate stably in the fields of pharmaceuticals, chemicals, food, and building materials, meeting the production standards of different industries.
Application
1. Mix evenly: No dead corners. The double-cone structure helps the materials fully intermingle, with high uniformity, suitable for powder and granular materials;
2. Sealed well: The sealed container design prevents dust contamination and material leakage, meeting the requirements of the clean industry;
3. Easy to operate: Simple structure, quick discharging, less residue, no need for complex disassembly for daily maintenance;
4. Wide range of applications: Can be equipped with temperature control and vacuum systems, suitable for general and special process requirements of multiple industries;
5. Low loss: No high-speed stirring components, less material wear, stable properties, low equipment operating noise, long service life.
Product parameter
| Model | W-300 | W-500 | W-1000 | W-1500 | W-2500 | W-4000 | W-6000 | W-8000 |
|
Production capacity (kg/time) |
150 | 250 | 500 | 750 | 1250 | 2000 | 3000 | 4000 |
|
Full volume (cubic meter) |
0.3 | 0.5 | 1 | 1.5 | 2.5 | 4 | 6 | 8 |
|
Mixing time (min) |
4-8 | 4-8 | 6-12 | 6-12 | 6-12 | 6-15 | 6-15 | 6-15 |
|
Motor power (KW) |
1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Cylinder speed (RPM) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 10 |
|
Dimension (L*W*H) |
1680*650 *1600 |
2080*750 *1900 |
2150*850 *2100 |
2300*1600 *3100 |
2500*1000 *2450 |
2980*1580 *2800 |
3500*1800 *3000 |
3980*2000 *3200 |
| Weight (kg) | 310 | 550 | 800 | 950 | 1650 | 1880 | 2350 | 2680 |
Production Line Diagram
1. Worker release the bag on the dust-free bag dumping station, as there is a dust collector in the machine, so dust fly
2. The sieve machine will remove the lump or big-size material, only allowing smaller size material to flow into the conveying system
3. The vacuum conveyor transports the material to a buffer hopper or a storage hopper, waiting for the mix
4. When you need to mix, the vacuum feeder starts work, transport the material from the hopper to the double cone mixer
5. After mix, the mixed material will be transported to a packing machine, packed according to the set weight, and then sealed the bag
In the system, the entire conveying process is sealed to ensure hygiene and safety.
