| 起源の場所: | 中国 |
|---|---|
| ブランド名: | EVERSUN |
| 証明: | ISO,CE |
| モデル番号: | VBDS |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準的な輸出用木製ケース |
| 受渡し時間: | 7～15営業日以内 |
| 支払条件: | L/C、D/A、D/P、T/T、マネーグラム、ウェスタンユニオン |
| 供給の能力: | 5000セット/年 |
| 混合方法: | 円錐形 | 材料: | ステンレス鋼 |
|---|---|---|---|
| 混合パワー: | 1-50 KW | タイプ: | 産業混合装置 |
| 応用: | 食品,化学,製薬産業 | 排出方法: | 空気圧バルブ |
| 温度制御: | サーモスタット | 安全機能: | 非常停止ボタン |
| 制御システム: | PLC | 保証: | 1年 |
| 特徴: | 穏やかな混合、デッドゾーンなし、清掃が簡単 | 認証: | CE,ISO,GMP |
| 重さ: | モデルによって異なります |
Product Description

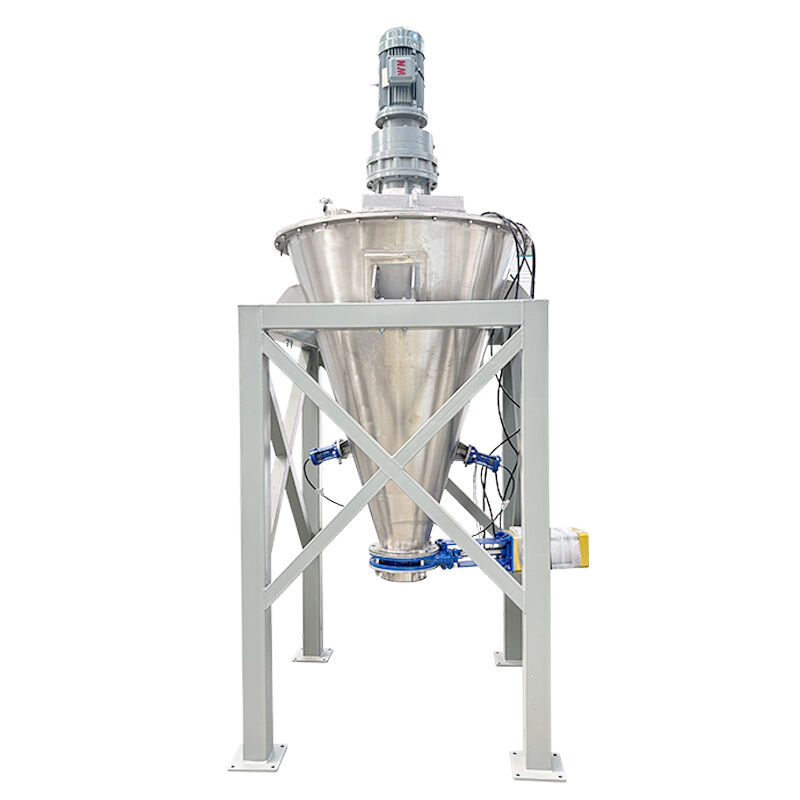

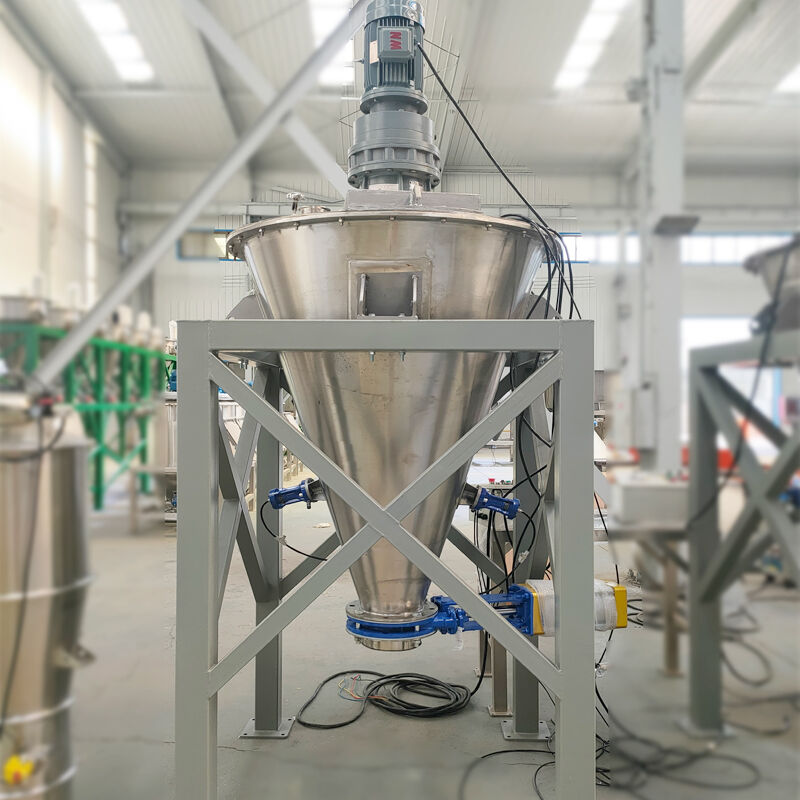

The conical mixer is a well-designed mixing equipment, renowned for its unique conical cavity and efficient double-screw agitator. It can achieve rapid, uniform and gentle mixing of powder, granules and other materials, while ensuring thorough and residue-free discharge. The equipment operates smoothly, has low noise, and has a smooth interior that is easy to clean. It fully complies with strict production standards in industries such as food and chemical, making it an ideal choice for those seeking efficient and reliable mixing processes.
Working Principle
The core working principle of the conical mixer is based on the ingenious combination of forced convective diffusion and gravitational flow. The key lies in the combined motion of the double helical stirrers: two helical stirrers revolve around the central axis of the conical container while also rotating at high speed on their own.
This movement has two key functions: Firstly, the rotation of the spiral will forcefully lift the materials from the bottom of the cone to the top; subsequently, the lifted materials, under the influence of gravity, will evenly spread out and fall back towards the central area to the bottom. The materials undergo a three-dimensional cycle of lifting, diffusion, and reflux throughout the container, rapidly achieving a uniform distribution from the microscopic to the macroscopic level. The entire process is efficient, gentle, and has no mixing dead zones.
Product features
1. Excellent uniformity in mixing: The unique double helix motion creates three-dimensional convection, ensuring that the materials achieve high-precision and no-cornered uniform mixing within a short period.
2. Good protection for materials: The mixing process mainly relies on diffusion and convection, with low shear force, which can maximize the retention of the original particle shape and physical properties of the materials.
3. Economical and efficient operation: The equipment has a high loading coefficient, short mixing cycle, relatively low energy consumption, and rapid and thorough discharging, reducing material loss between batches and cleaning time.
4. Strong applicability and reliability: Suitable for a wide range of materials from powders to granules, running smoothly, with low noise, and easy to clean and maintain, meeting the strict production standards of industries such as pharmaceuticals and food.
Product Parameters
| Model | VBDS-180 | VBDS-300 | VBDS-500 | VBDS-1000 | VBDS-2000 | VBDS-3000 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 |
| Capacity (kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 |
| Total volume(m³) | 0.18 | 0.3 | 0.5 | 1 | 2 | 3 |
| Mixing time(min) | 4~8 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 |
| Speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 |
Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.
