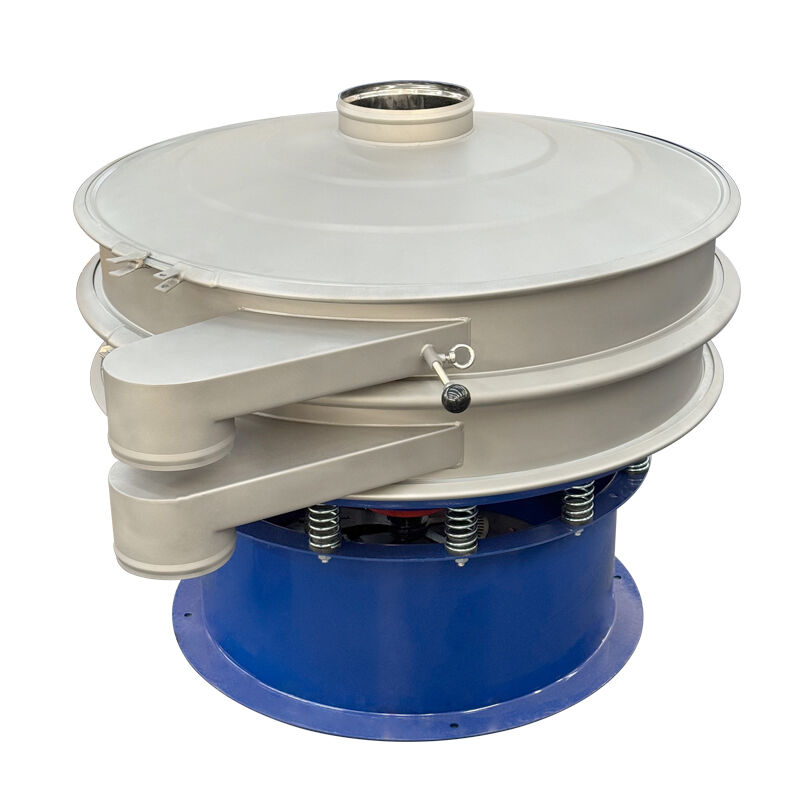

Vibratory Screening Machine

Product description

The rotary vibrating screen is a highly efficient and precise screening device, widely used in industries such as chemical engineering, food, medicine, metallurgy, and non-metallic minerals. It is mainly used for rapid classification, impurity removal, or filtration of granular and powdered materials. With a compact structure, small volume, and light weight, it features a unique three-dimensional motion trajectory, which effectively prevents material from clogging the mesh holes, significantly improving screening efficiency and accuracy. Moreover, it is easy to replace the screen and move for maintenance, making it a key equipment for achieving refined material processing in modern production lines.

Working principle
The working principle of the rotary vibrating screen is to utilize a vertical vibration motor as the excitation source. At both ends of the motor, adjustable eccentric weights are installed, converting the rotational motion of the motor into three-dimensional elliptical motion trajectories in the horizontal, vertical, and inclined directions and transmitting them to the screen surface. The materials on the screen surface are subjected to this combined motion. On one hand, they spread outward in a spiral manner along the screen surface. On the other hand, they are thrown upward in the vertical direction, thereby allowing particles smaller than the screen holes to pass through the screen and fall down, while materials with larger screen holes move along the screen surface in a spiral motion and are discharged through the discharge port. By adjusting the phase angle of the upper and lower weights and the excitation force, the movement trajectory of the materials and the screening efficiency can be flexibly controlled.

Features & Benefits

1.Fine multi-level: Capable of handling ultra-fine powders and micro-liquid suspensions, supporting simultaneous operation of multiple layers of screen meshes, and achieving multi-specification classification in one go.
2.High-efficiency anti-blockage: Unique bouncing ball cleaning mechanism design, effectively preventing blockage of holes, ensuring continuous high output.
3.Fully sealed and environmentally friendly: Fully enclosed structure, no dust flying, no material leakage, ensuring pure materials and a clean environment.
4.Convenient and flexible: Quick 3-5 minutes to change screens, adjustable 360° outlet, easy to clean and layout adaptation.
5.Strong adaptability and durability: Small size, low noise, easy to move, widely applicable to granular and powder materials.

Product parameter

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free
2. The mixed materials directly enter the sieve machine for screening

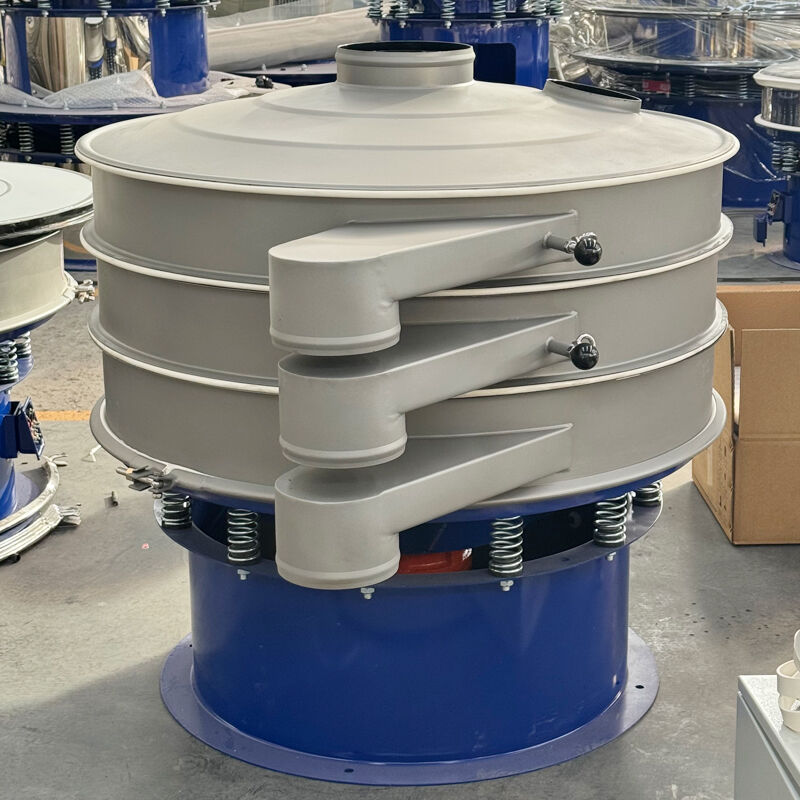

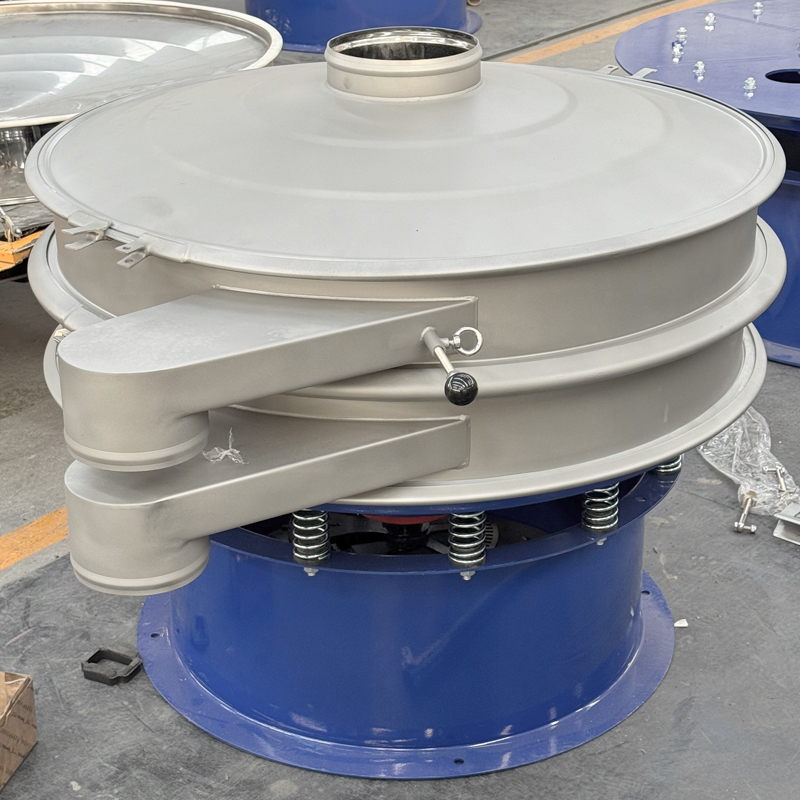

Detail display

Application
